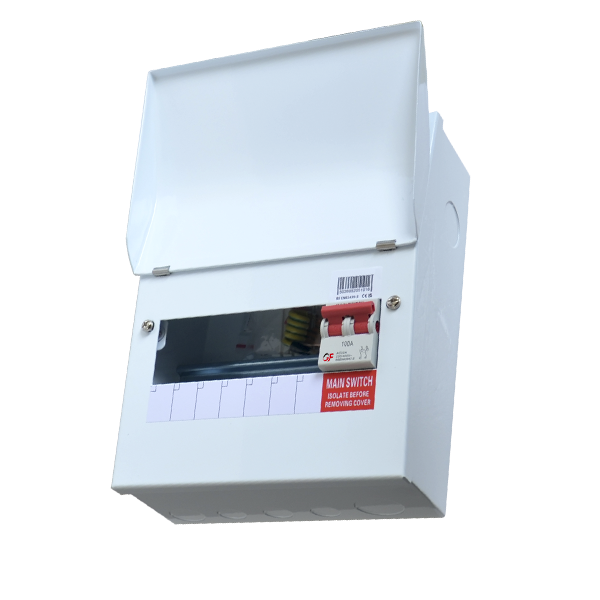

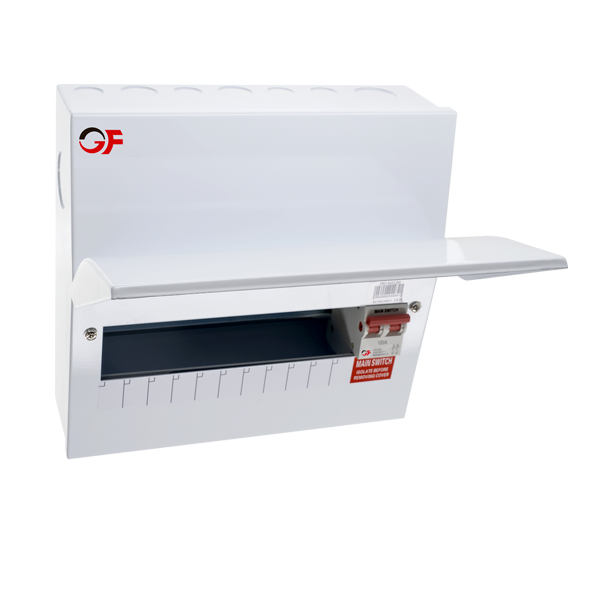

Supplied complete with main switch.One extra module for installation of SPD.New & improved range.Extra wiring space.Selection of knockouts for mini trunking and conduits.
Supplied complete with main switch.
One extra module for installation of SPD.
New & improved range.
Extra wiring space.
Selection of knockouts for mini trunking and conduits.
| The Distribution Box is used for Terminal power distributing system | |
| The Distribution Box are completed with Din-rail 35mm and Neutral Terminal (Selectable) |
| Rated operating voltage | 230V |
| Protection degree | IP2XC |
| Manufacturing material | Steel |
| Frequency | 50Hz |
| Phase | 1 |
| Execution | Wall mounting |
| Modules Number | N+1 |
| Rated current | 100A |
| Circuit Protection and Control | N/A |
| 04 | 100A MAINSWITCH | 266x136x106mm (HWD) |
| 08 | 100A MAINSWITCH | 266x210x106mm (HWD) |
| 10 | 100A MAINSWITCH | 766x244x106mm (HWD) |
| 12 | 100A MAINSWITCH | 266x281x106mm (HWD) |
| 16 | 100A MAINSWITCH | 266x353x106mm (HWD) |
| 21 | 100A MAINSWITCH | 266x443x106mm (HWD) |
BS EN 61439-3
BS EN 60947-3
