TECHNICAL DATAThe Distribution Box is used for Terminal power distributing systemThe Distribution Box are completed with Din-rail 35mm and NeutralTerminal (Selectable)Rated operating voltage230VProtection degreeIP2XCManufacturing materialSteelFrequency50HzPhase1ExecutionWall mountingModules Nu

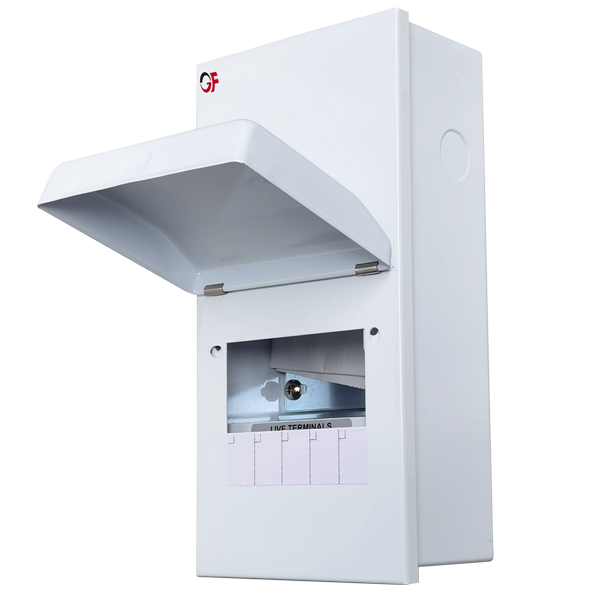

| The Distribution Box is used for Terminal power distributing system | |

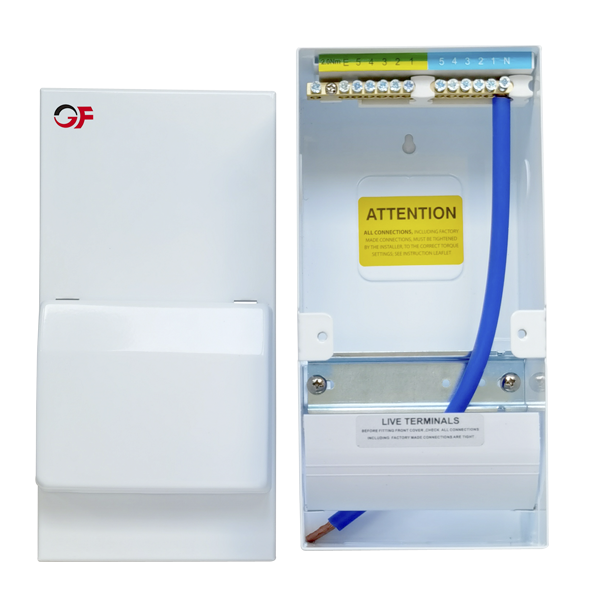

| The Distribution Box are completed with Din-rail 35mm and Neutral Terminal (Selectable) |
| Rated operating voltage | 230V |
| Protection degree | IP2XC |
| Manufacturing material | Steel |
| Frequency | 50Hz |
| Phase | 1 |
| Execution | Wall mounting |
| Modules Number | N+1 |
| Rated current | 100A |
| Circuit Protection and Control | N/A |
| Circuit Protection and Control | N/A |
| 04 | 100A | 270x135x104mm (HWD) |
| 08 | 100A | 270x210x104mm (HWD) |
| 10 | 100A | 270x235x104mm (HWD) |
| 12 | 100A | 270x280x104mm (HWD) |
| 16 | 100A | 270x350x104mm (HWD) |

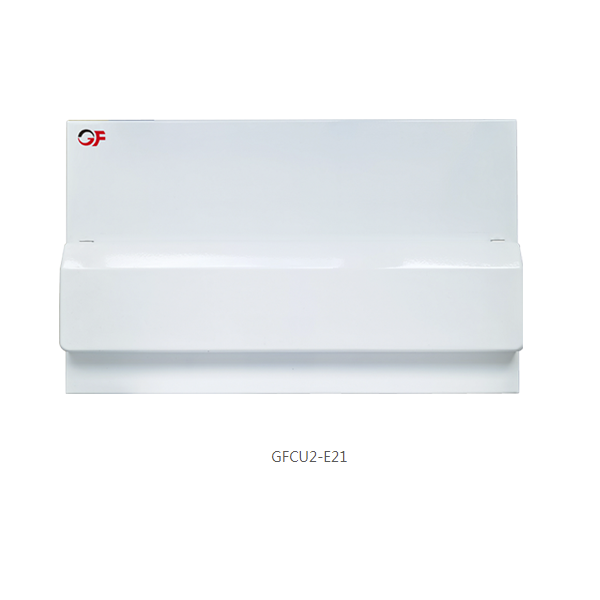

| 21 | 100A | 270x440x105mm (HWD) |
BS EN 61439-3
BS EN 60947-3
