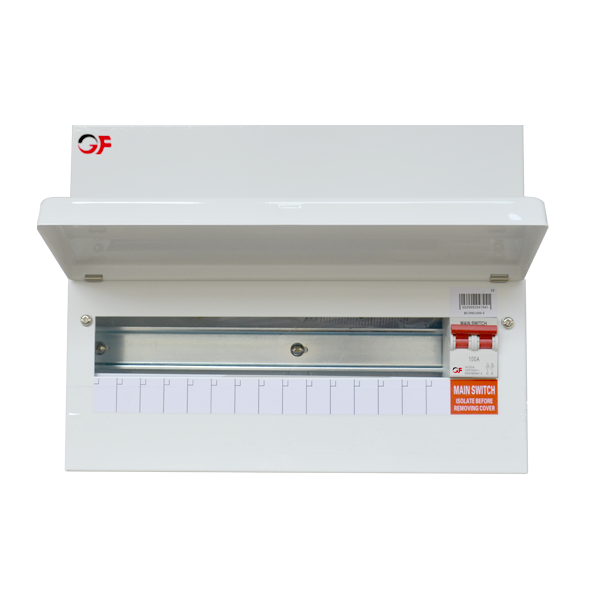

Supplied complete with main switch.One extra module for installation of SPD.New & improved range.Extra wiring space.Selection of knockouts for mini trunking and conduits.

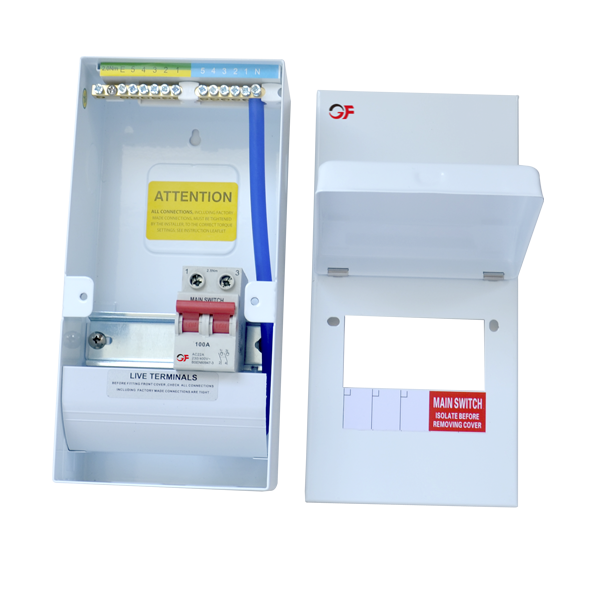

Supplied complete with main switch.
One extra module for installation of SPD.
New & improved range.
Extra wiring space.

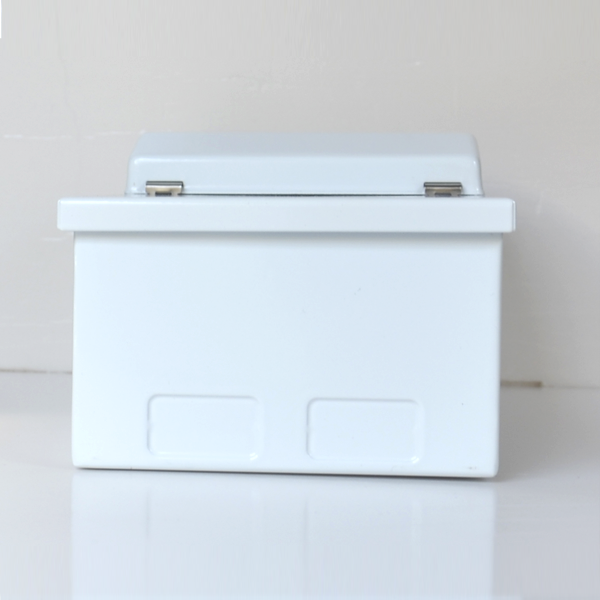

Selection of knockouts for mini trunking and conduits.
| The Distribution Box is used for Terminal power distributing system | |
| The Distribution Box are completed with Din-rail 35mm and Neutral Terminal (Selectable) |
| Rated operating voltage | 230V |
| Protection degree | IP2XC |
| Manufacturing material | Steel |
| Frequency | 50Hz |
| Phase | 1 |
| Execution | Wall mounting |
| Modules Number | N+1 |
| Rated current | 100A |
| Circuit Protection and Control | N/A |
| GFCU2-M04 | 100A MAINSWITCH | 270x135x104mm (HWD) |
| GFCU2-M08 | 100A MAINSWITCH | 270x210x104mm (HWD) |
| GFCU2-M10 | 100A MAINSWITCH | 270x235x104mm (HWD) |
| GFCU2-M12 | 100A MAINSWITCH | 270x280x104mm (HWD) |
| GFCU2-M16 | 100A MAINSWITCH | 270x350x104mm (HWD) |
| GFCU2-M21 | 100A MAINSWITCH | 270x440x105mm (HWD) |
BS EN 61439-3
BS EN 60947-3
