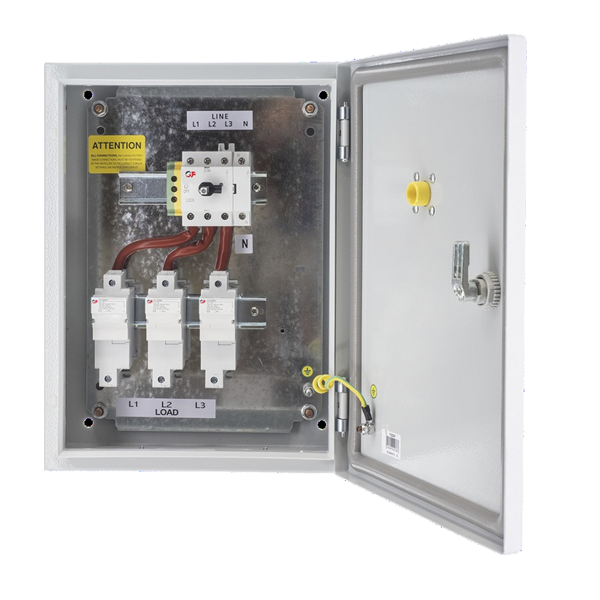

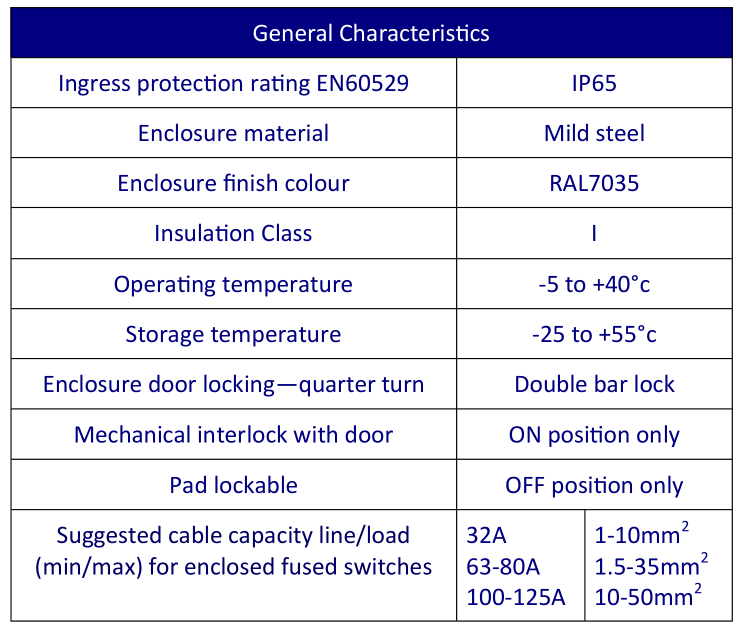

• Robust and wide IP65 Enclosures

• Fully rated to AC-23A category - allows safe operation even with highly inductive loads (e.g. Motors, etc.)

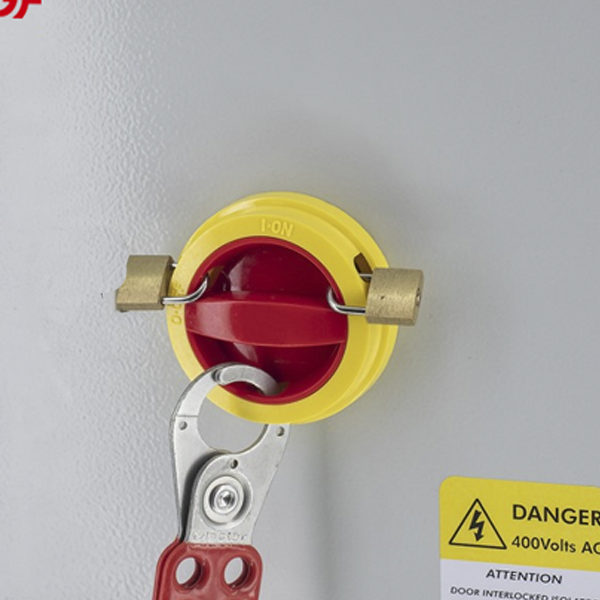

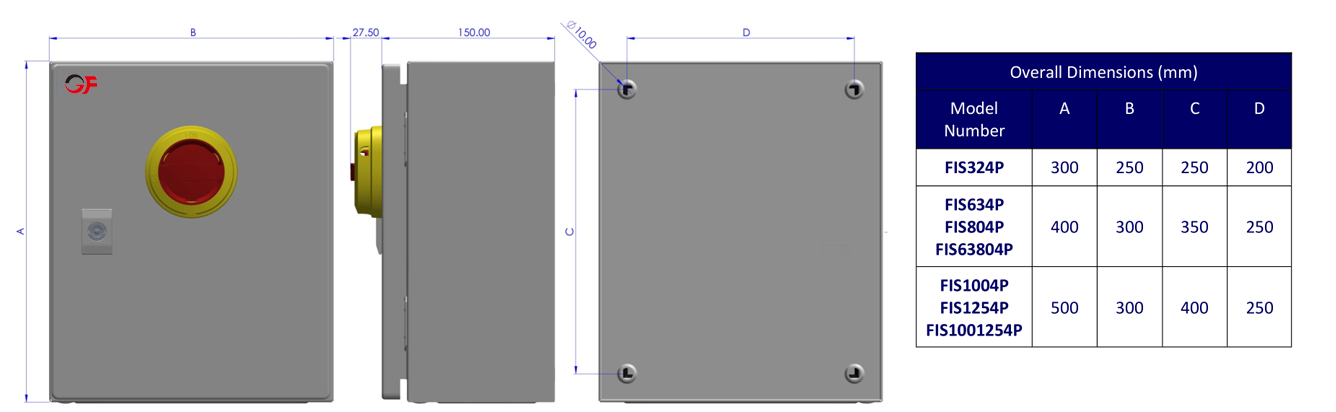

• Pad lockable and interlocked door

• Powder coated mild steel enclosures with a wide space for comfortable wiring

This unit must be installed by a qualified electrician in accordance with the latest

edition of the IET wiring regulations BS7671.

The enclosure should be installed on a flat vertical wall, and must be earthed.

To maintain the ingress protection rating of the

enclosure, suitable cable entry glands must be utilised.

The switch mechanism may be fitted with a maximum of two add on auxiliary

contact blocks (type 206911), on the left hand side of the switch.

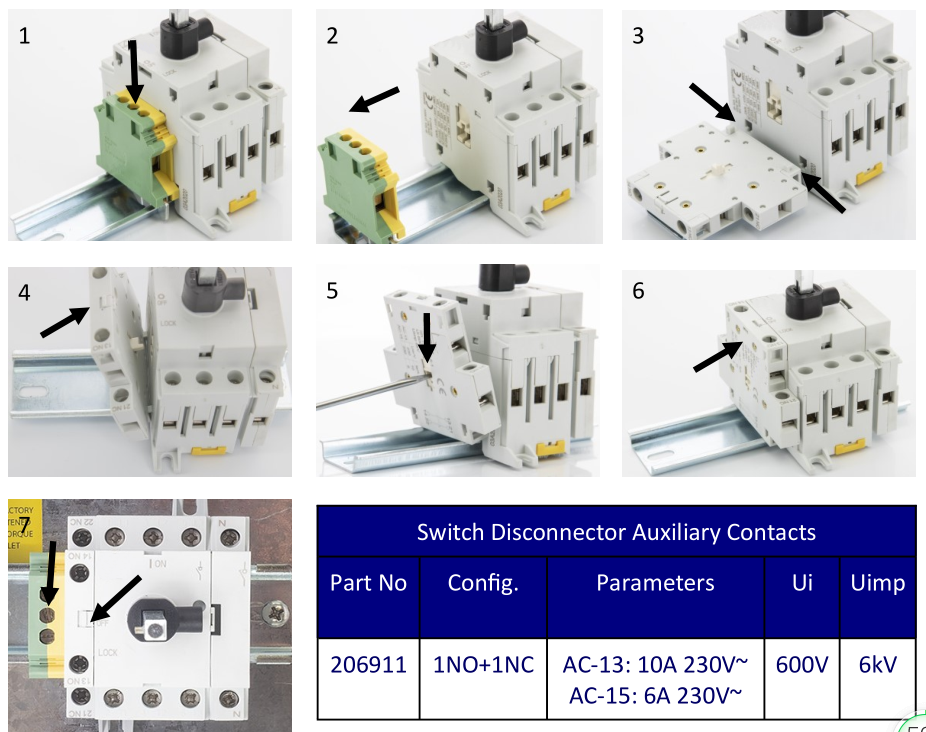

1. Loosen the centre screw on the green /yellow earth terminal

2. Slide it to the left to provide access to the switch body.

3. Align the 2 fixing clips on the add on block with the corresponding holes on

the switch body

4. Rotate the add on block towards the upright position

5. Press down the actuator on the auxiliary contact block

6. Lock into place

7. Reposition the earth terminal and securely fasten the centre screw

To release an add on block, press and hold the locking tab located on the front face

of the block (see picture 7), away from the main switch body.

The switched neutral pole (on the right hand side of the switch assembly) can be

exchanged for an alternative neutral pole with solid unswitched connection, using

the same method as detailed above for fixing / releasing of add on blocks.

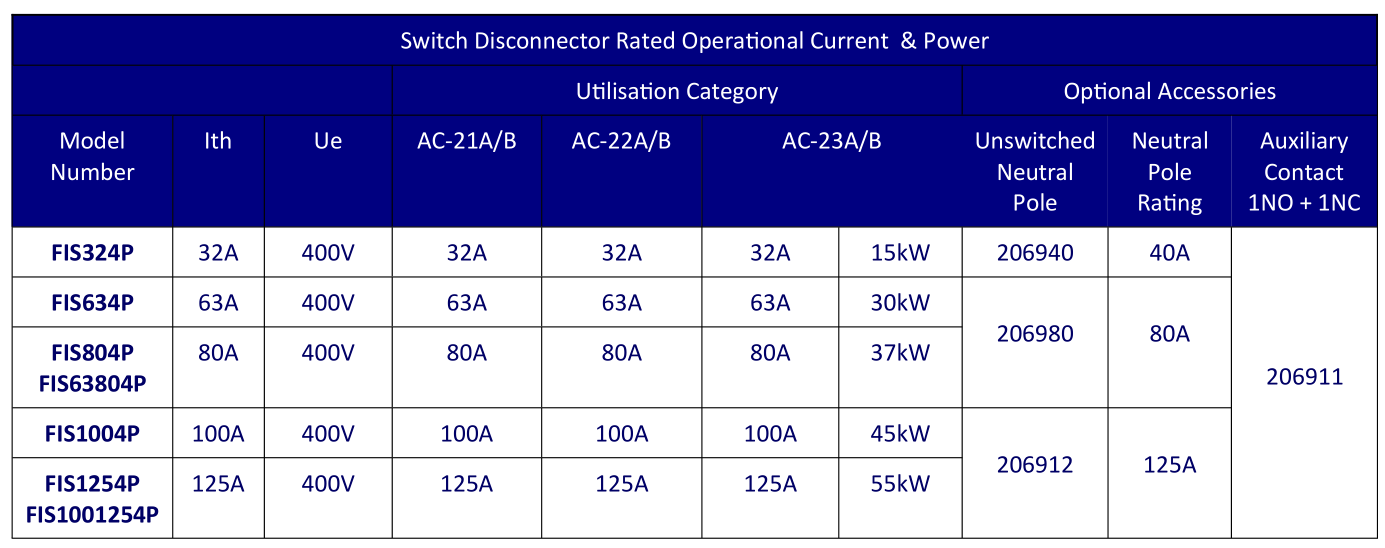

(Refer to table overleaf for relevant part numbers).
