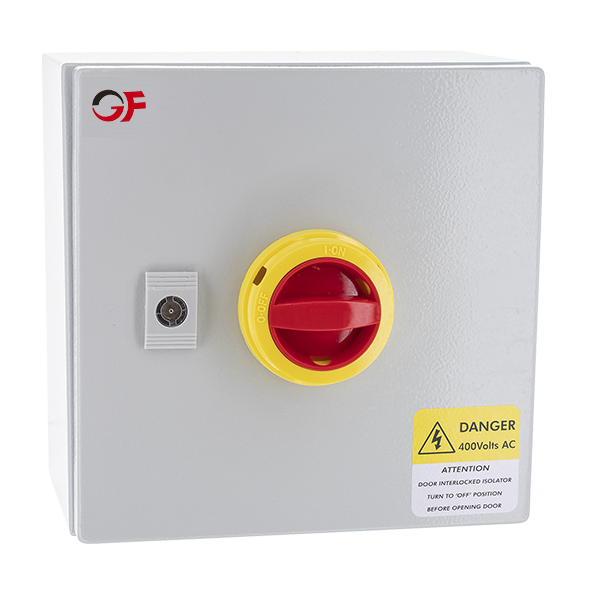

• Robust and wide IP65 Enclosures

• Fully rated to AC-23A category - allows safe operation even with highly inductive loads (e.g. Motors, etc.)

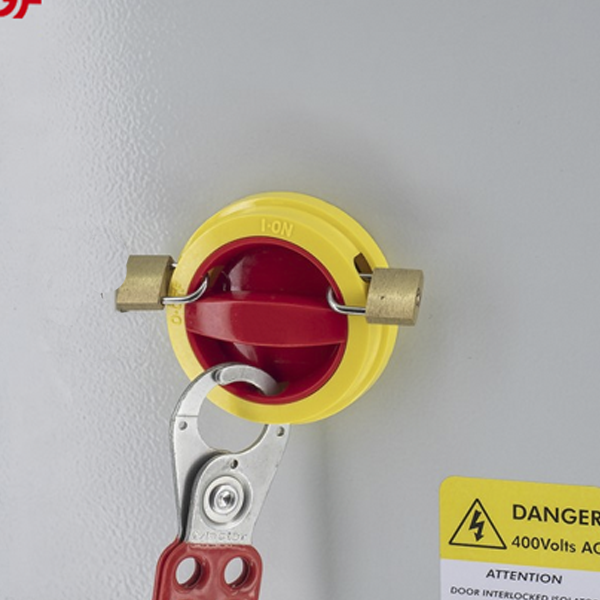

• Pad lockable and interlocked door

• Powder coated mild steel enclosures with a wide space for comfortable wiring

Isolators may be fitted with a maximum of two add on auxiliary contact blocks  (type 206911), on the left hand side of the switch.

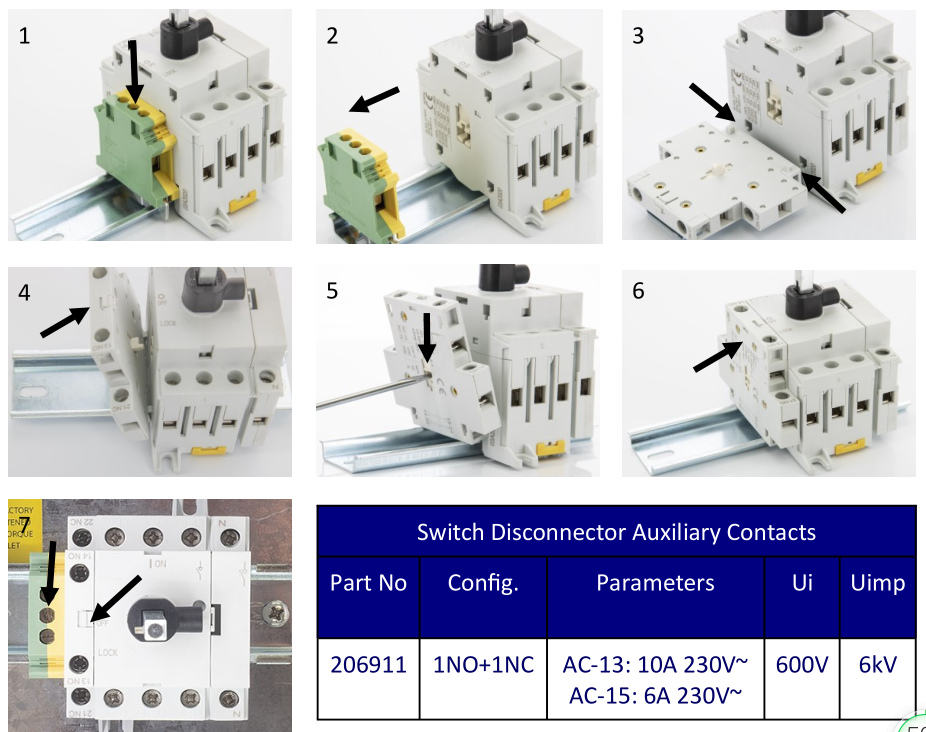

1. Loosen the centre screw on the green /yellow earth terminal

 2. Slide it to the left to provide access to the switch body.

3. Align the 2 fixing clips on the add on block with the corresponding holes on  the switch body

4. Rotate the add on block towards the upright position

5. Press down the actuator on the add on block

 6. Lock into place

7. Reposition the earth terminal and securely fasten the centre screw

To release an add on block, press and hold the locking tab located on the front face  of the block (see picture 7), away from the main switch body.

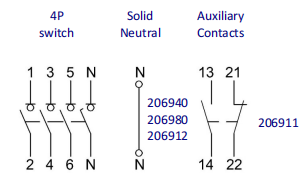

The switched neutral pole (on the right hand side of the switch assembly) can be  exchanged for an alternative neutral pole with solid unswitched

connection, using  the same method as detailed above for fixing / releasing of add on blocks.
